What is an Open Circuit in PCB?
Essentially, a PCB open circuit refers to a break or gap in the copper traces of a printed circuit board that stops the flow of electric current. Unlike a closed circuit which allows electricity to flow unimpeded, an open circuit is like hitting a roadblock. This halts power from reaching components and ICs, leading to complete electrical failures. Locating and repairing these open circuits is key to restoring normal operation.
Key Characteristics of Open Circuits in PCBs
Open circuits exhibit three distinctive characteristics that reveal their performance-crippling influence:
No Current Flow Disrupts Functionality: The most apparent impact is that open circuits completely stop current flow in their tracks. Without current, components have no power source and integrated circuits (ICs) can send no signals. This failure to transmit electrical energy prevents the normal functioning of PCB sub-circuits and can lead entire systems to crash if critical traces are disrupted.
Infinite Resistance Prevents Power Transfer: Open circuits essentially act as an element of infinite resistance (R=∞) in an electrical system. With no conductive trace for current to flow through, they resist any transmission of power. This explains why downstream components no longer receive any current to activate them—the open circuit blocks all power transfer.
Voltage Remains Despite Lack of Current: Interestingly, while no current flows across an open circuit, voltage still exists between the severed points. This voltage reflects the potential difference applied to the overall PCB but does not translate into current flow due to discontinuity. Consider voltage the “pressure” and current the “flow”—pressure exists without flow in an open circuit.
Steps to Diagnose Open Circuits in PCBs
- Step 1: Visual Inspection for Damage
- Step 2: Multimeter Testing to Check Continuity
Using a multimeter to check continuity provides definitive proof of opens. By measuring across points in suspect traces, technicians can determine if an unexpectedly high resistance is blocking current flow. Repeated testing of interconnects isolates the location of the discontinuity.
Step 3: Oscilloscope Waveform Analysis

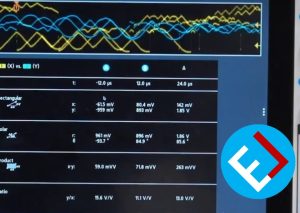

Observing circuit waveforms on an oscilloscope screen helps diagnosticians identify distortions that suggest open circuits. Abnormal signal shapes with longer rise/fall times hint at excessive resistance blocking paths.
- Step 4: Thermal Imaging to Detect Increased Resistance

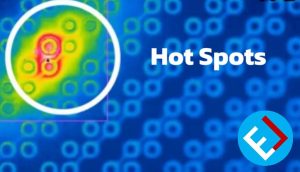

Since open traces generate heat under power due to their unwanted high resistance, thermal cameras detect this infrared energy. Hot spots expose defective areas long before they might visibly manifest or cause total failure.
Common Causes of Open Circuits in PCBs
To form an effective prevention plan, understanding what induces open circuits becomes imperative.
Three primary culprits are at play:
Component Failure
- Proper soldering and bonding mitigate Open Circuits issues. Vibration can slowly loosen wire connections and traces from pads, introducing unwanted resistance until opening the form.
- Careful routing and insulation could help. Cyclical stress or accidental nicks in traces can fracture copper wires, as can thermal expansion stresses across the PCB laminate over time.
- Using adequately rated parts avoids such issues.Failed discrete components like resistors can force excessive current through neighboring paths, eventually blowing traces like electrical fuses.
Design & Manufacturing Defects
- Tight process controls minimize such cases. Defects in photomasks and during PCB etching create discontinuities if trace dimensions fall below target widths and spacing.
- Proper material selection by PCB designers is key. Coefficient of thermal expansion (CTE) mismatches between PCB layers introduce mechanical stress, which cracks thin or brittle traces when temperature swings widely.
- Keeping fabrication environments clean is mandatory. Airborne particles trapped during lamination prevent foil adhesion, beginning small openings that expand over time.
Environmental Factors
Consequences of Undetected Open Circuits
Don’t assume open circuits just harm individual PCBs—their impacts cascade into overall system problems:
Functional Failures and System Crashes
Increased Maintenance Needs
Safety Risks in Critical Systems
Preventing Open Circuits in PCB Design
Rigorous Design Analysis & Reviews
- Leave no stone unturned while evaluating PCB layouts. Given expected service environments, perform exhaustive thermal analyses to predict hot spots or thermal stresses. Review all specified components to guarantee suitability for environmental limits. Peer reviews also catch issues individual engineers may overlook.
Following Best Routing Practices
- Creating robust trace layouts begins in CAD software. Verify all tracks meet minimum width/spacing rules based on voltage levels and current capacity needs. Avoid 90 ̊ angles and use smooth curves to eliminate sharp corners that concentrate stresses. Duplicate critical signal paths to add redundancy against possible opens.
Selecting Durable, Quality Components
- Not all circuit board hardware proves equal in durability. Seek reviews and test data for items like connectors or sockets susceptible to vibration or cyclical mechanical stresses over long-term use. Whenever possible, specify components with longer service life or ones proven suitable in comparable field conditions.
Protecting Traces from Environmental Damage
- Shielding a PCB from the elements is possible, too—make it a priority. For commercially available boards, specify conformal coatings offering insulation against moisture, oxygen corrosion, and other harms. Simple acrylic or epoxy sprays work. For homebrew boards, a quick brush-on layer of household polyurethane sealer achieves similar protection.
