Because of their simple and easy layout, single layer PCBs are ideal for straightforward circuits and electronics when complex features or compact designs are not required. Follow ELEPCB for a more in-depth look at 1 layer PCB.
What is a Single Layer PCB?
In the early phases of development, the most basic kind of PCB which just contains one layer, is typically utilized.
Single layer PCBs are straightforward materials to design and manufacture. On one side it has electronic components and a copper layer on the other. Over the base material, copper wires are arranged in a single line.
Since electricity is carried by a single layer, all of its routes travel in the same direction and are unable to mix or cross one another. As a result, these PCBs can be utilized in spaces with limited space.
Structurally, a single layer PCB is also often thought of as a single sided PCB.
ELEPCB already has a popular article that gives a very comprehensive overview of the various types of PCBs from a PCB type perspective.
Pros and Cons of Single Layer PCB Board
Pros of Single Layer PCB
Several advantages of single layer PCBs make them popular for multiple applications.
- Simple
- Reasonable cost
- Ideal for prototyping testing: Low cost and intuitive.
- Durable & Authentic: There are less chances of production or connectivity issues with fewer layers.
Cons of Single Layer PCB
- Limited Component Density
- Increased Trace Length
- Higher Risk of Signal Interference
- Limited Design Flexibility
- Larger Board Size for Complex Circuits
- Potential for Higher Power Loss
Types of Single Layer PCB
Single layer PCBs come in a range of designs depending on the materials used and their intended applications:
1. High-Frequency Single Layer PCBs
- A high-frequency single layer PCB is designed for fast signal transmission.
2. Metal Core/ Aluminum-backed Single Layer PCBs
- It is distinguished by having an aluminum base. Making aluminum-backed single layer PCBs is very good at dissipating heat and finding their applications in high-power applications such as LED lighting.
3. Rigid Single Layer PCBs
- Rigid Single Layer PCBs are manufactured from fiberglass or hard materials, which makes them tough enough for home appliances and machinery.
4. Flexible Single Layer PCBs
- Material flexibility, such as polyimide in single-layer PCBs, makes them bendable and hence capable of fitting into compact spaces. So, Flexible Single Layer PCBs are perfect for tiny devices like wearables.
5.Rigid-flex Single Layer PCBs
- Rigid-flex single-layer PCBs incorporate rigid and flexible elements.
- Rigid elements are crucial in electronic casings for fixed components.
- The flexible elements make PCBs available in several shapes, which are ideal for cramped spaces or mobile applications.
Multilayer Vs Single Layer PCB
The types of vias you’ll use when designing your PCB are worth considering. Even though multi-layer boards are more expensive and take longer to produce than single-pair systems, they offer better performance, allow for greater component compatibility, and improve signal quality.
Single Layer PCB
Single layer PCBs are the easiest and most affordable option and better choice for simpler applications or smaller quantities because they require less lead time and assembly.
Multi-Layer PCB
Multi-layer PCBs, which involve stacking multiple metal layers, result in more intricate and dense circuit designs. Often found in small, powerful electronic devices such as phones and laptops.
If you want to know more about Multi-layer PCB, you can also move to this page of ELEPCB.
Inside there is a detailed explanation of Multi-layer PCB, including concept, types, applications, manufacturing, and other related topics.
| Features | Single Layer PCB | Multilayer PCB |
| Design complexity | Simple and easy | Complex with multiple layers |
| Cost | Lower cost | higher cost |
| Durability | Less durable | More robust and durable |
| Applications | Basic electronic devices | Advance electronic devices |
| Heat management | Limited | Improve heat dissipation |
| Signal integrity | Suitable for basic circuits | Offer good signal integrity for high speed applications |
Applications of Single Layer PCB
Single layer PCBs are used in a wide range of applications, particularly in devices where complex circuits or high-density designs aren’t necessary. Some common examples include:
- Household Appliances:
Coffee makers, blenders, and washing machines often rely on single layer PCBs.
- Lighting Solutions:
LED lights and other basic lighting systems use these PCBs.
- Consumer Electronics:
Radios, calculators, and printers are just a few examples.
- Automotive Components:
Basic control systems in vehicles, such as window controls or wipers, use single layer PCBs.
- Industrial Equipment:
Tools and machinery with straightforward electronic functions.
Applications in New and Emerging Fields
- Internet of Things (IoT) Edge Devices
The advantage of single-layer PCBs for IoT edge devices is that IoT edge devices usually require low cost, small size, and low power consumption, and single layer PCBs can meet these requirements by simplifying the design and reducing the number of layers.
For instance, a circuit layout optimization for the single layer PCBs of the smart sensor nodes is achieved by integrating in limited single layer space functional components such as sensor interfaces, wireless communication modules, and microcontrollers to ensure signal integrity and electromagnetic compatibility at one time.
- Quantum Computing Auxiliary Devices
While quantum computing requires special circuit requirements in the heart of it.
For instance, quantum bits can use single layer PCBs, such auxiliary devices in quantum computing are cooling system control circuits in quantum computers.
Based on the simple structure of a single layer PCB, it is possible to design very reliable temperature monitoring and control circuits for quantum computing device stability.
How to Design Single Layer PCB?
When making a single layer PCB, there are a few things to do.
Step 1:
Determine Your Needs
Step 2:
Create a Schematic Diagram
Step 3:
Choose Components
This covers the components, their power requirements, size restrictions, and any special guidelines for circuit board design.
Use PCB design software such as Eagle, KiCad, or Altium Designer to sketch your circuit.
The connections among the parts are demonstrated by this schematic diagram.
- Depending on how your design functions, choose the appropriate components (such as chips, resistors, capacitors).
- Verify that they can fit on your board and that they require the appropriate amount of current.
Step 4:
Design the PCB Layout
Step 5:
Route Traces
Step 6:
Add Power and Ground Planes
- In accordance with your diagram, arrange the components on the PCB design software.
- Pay attention to the traces’ widths and the distances between them to ensure that power is allocated appropriately and signals remain clear.
Create pathways that allow for the flow of current to join components.
The limited space of single layer PCBs makes them more prone to difficulties.
To make it stable, add spaces that are clear for connecting electricity and ground.
In simpler systems, this might just require individual observation for each trace.
Step 7:
Examine Design Rules
Step 8:
Creating Gerber Files
Step 9:
Review
and Test
Make that all connections are routed correctly, parts are positioned appropriately, and the board satisfies manufacturer specifications.
Such as minimum trace widths, hole sizes, and spacing, by using the design rule check (DRC) function in your software.
As soon as your design is complete, create the Gerber files, which contain all the information required to create the PCB.
Details regarding the copper layers, drill holes, and other crucial manufacturing data will be included in these files.
Examine the design thoroughly before beginning to create it.
Try testing the circuit if you can to identify any errors or problems that might be affecting its functionality.
Design Consideration For Single Layer PCB
It is very simple to designing a single layer PCB if you follow below guidelines:
The Layout
- Creating a basic stacking guide is crucial for your PCB design.
- Fisrtly, consider component placement for shortest connections.
- Secondly, keep signal paths clear.
- Thirdly, avoid crossing traces as much as possible.
Thickness of Traces
- Pay close attention to the thickness of the traces on your board. The amount of copper used in the traces is measured in ounces per square foot.
- Most designs use just 1 oz/ft² copper, but some manufacturers can provide boards with more oz/ft² based on the requirements.
- Remember, using the incorrect trace thickness can cause lamination and soldering issues, so choose wisely.
Construction Restraints
- Always specify your design requirements in advance to ensure your PCB meets your expectations.
- Consider factors such as component placement, layer assignment, flight analysis duration, and the time needed for engineering. A clear set of specifications will save time and prevent costly redesigns.
High-Quality Signals
- Focus on signal integrity throughout the design process. Monitor the rise and fall times of signals, track lengths, impedances, and drive intensity.
- Testing both before and after the layout ensures that your efforts produce the desired results.
Consider Layers Before Buying
- Need to recognize your buying needs. Then set a budget.
- From a global perspective, it is best to have a holistic and more detailed view of the PCB design, and then select the layer configuration that offers the best combination of cost/time and functionality.
- When it comes to complex applications, you may need to consider multi-layer or double-sided PCBs instead of single layer PCB.
How are Single Layer PCBs Manufactured?
- Substrate Preparation: Surface preparation involves covering a base material, usually fiberglass with slick copper.
- Design Printing: Using a light-sensitive material, the copper layer is printed with the circuit design.
- Etching: Etching is performed by removing unnecessary copper through a chemical process, leaving only the desired circuit lines intact.

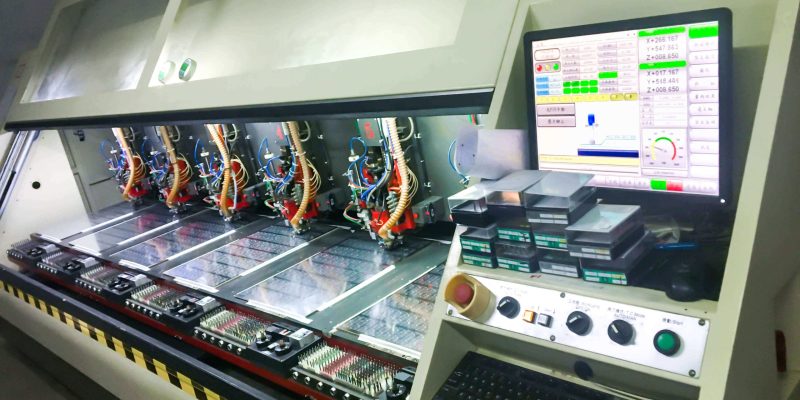

- Drilling: Drill holes are drilled in components that need to be attached.
- Solder Mask Application: Solder Mask is applied to copper wires to prevent rust and short circuits.
- Silkscreen Printing: For ease of use, silkscreen printing is used for labels, logos or product names.
ELEPCB is a Single layer PCB manufacturer and assembler, we offer one stop single sided PCB manufacturing and service. We pay strict attention to details. Even simple boards like single-layer boards will be produced and assembled in strict accordance with our quality standards.
Conclusion
Single layer PCBs are an inexpensive and simple solution for numerous electronic applications. Although single layer PCBs have limitations on the number of components that can fit and the way they can be arranged, they are still a popular option for small-scale product manufacturing, prototyping, and basic circuits.
By understanding the benefits and drawbacks, manufacturing process, and design concerns associated with single layer PCBs, engineers and enthusiasts can select the best kind of PCB for their projects.
