Modern electronic systems ensure faster data processing and communication by switching the signals at extremely high frequencies. When operating at very high speeds, the PCB traces act as transmission lines, and a minor design mistake can cause signal distortion, electromagnetic interference (EMI), and even system failure.
A successful high-speed PCB layout requires careful consideration of material selection, PCB stack-up design, controlled impedance routing, signal integrity, power integrity, grounding techniques, and design constraints.
This guide outlines key high-speed PCB design principles and best practices to assist engineers in developing reliable, high-performance PCB systems.
What Is a High-Speed PCB?
High-speed PCB is a type of PCB designed for digital circuits that demand high-speed transitions and exact timing. Unlike traditional PCB designs, high-speed PCB performance depends not only on operating frequency but also on signal rise time and fall time.
Above 50 MHz or with a signal rise time less than 1 ns are considered to be high-speed circuits.
In high-speed designs, engineers focus on time-domain analysis, where all the signal integrity problems like reflections, ringing, propagation delay, crosstalk, jitter and impedance discontinuities are considered.
What Is a High-Frequency PCB?
A high-frequency PCB is designed for circuits that use analog RF and microwave frequencies, generally on the order of 500 MHz or higher, and up to several GHz.
In high-frequency PCB, frequency domain analysis is performed by designers to measure parameters like insertion loss, return loss, dielectric loss, phase stability, impedance matching and electromagnetic radiation.
High-Speed vs High-Frequency PCB
The terms high-speed and high-frequency PCBs sound the same, but there are certain differences in their functions. The basic differences between these two types are given in the table below:
| Comparison Parameter | High-Speed PCB | High-Frequency PCB |
| Signal Type | Designed for high-speed digital signals with fast rise and fall times | Designed for analog, RF, and microwave signals operating at high frequencies |
| Analysis Domain | Focuses on time-domain analysis, including signal timing and integrity | Focuses on frequency-domain analysis, including signal behavior at different frequencies |
| Key Design Factor | Signal rise time, fall time, propagation delay, and timing accuracy | Operating frequency, wavelength effects, and RF signal stability |
| Typical Frequency Range | Usually above 50 MHz or with signal rise time below 1 ns | Typically from 500 MHz to several GHz range |
| Main Design Challenges | Controlling signal reflection, ringing, crosstalk, jitter, and impedance discontinuities | Reducing signal loss, dielectric loss, attenuation, and maintaining impedance matching |
| Routing Focus | Controlled impedance routing, differential pair routing, and trace length matching | RF impedance matching, minimizing insertion loss, and maintaining signal integrity |
| PCB Material Selection | Commonly uses FR-4 or low-loss materials depending on speed requirements | Uses specialized RF laminates with stable dielectric properties |
| Typical Applications | DDR memory, USB, PCIe, Ethernet, processors, and high-speed communication systems | Radar systems, antennas, microwave communication, and RF modules |
In reality, the differentiation between high-speed PCB and high-frequency PCB is sometimes quite blurred. A lot of sophisticated electronic systems still work with high-speed digital switching while simultaneously transmitting high-frequency signals, so both features are very much required.
Practical High-Speed PCB Design Guidelines
Applying the correct method in PCB design leads to less signal loss, higher performance of systems and fewer failures in case of very challenging applications such as 5G networking, automotive and high-speed computer industries.
Apply Proper Grounding Techniques
In high-speed designs, a continuous and low-impedance ground plane is essential to minimise EMI and improve the signal return paths. Some grounding techniques are the application of solid ground planes by avoiding the splitting and minimising the return path discontinuities.
Optimize PCB Layer Stack-Up Design
The stack-up of the PCB is also very important for high-speed applications. The key factors of layer stack-up design are:
- The combination of power and ground planes is used for a good reference.
- High-speed signal layers are placed adjacent to the reference plane for impedance control.
- A proper stackup developed with a low-loss dielectric material helps to minimise electromagnetic interference (EMI).
Maintain Signal Integrity
When the data rate is high, the signal integrity issues like reflections, ringing, crosstalk, propagation delay and timing skew can be seen. To enhance the signal integrity:
- Impedance matching must be used.
- Proper termination and return path must be maintained.
- Different simulation tools and software can be utilised to ensure the signal flow.
Improve Power Integrity
In sensitive circuits, voltage and noise may be induced due to poor power integrity. For reliability and high performance, high-speed PCBs need a stable power supply. To ensure power integrity:
- Low-impedance power planes are used.
- Decoupling capacitors are placed strategically.
- The power loop inductance is reduced.
- Broadband filters are used.
Use Controlled Impedance Routing
In a situation of high-speed signal rate, the PCB traces act as transmission lines. A discontinuity in the impedance can cause reflections and degradation of the signal. For controlled impedance routing, a uniform trace width is designed. Additionally, controlled impedances can be used for single-ended signals and differential pairs.
In general, 50Ω are used for single-ended signals and 100 Ω for differential pairs.
Follow PCB Design Rules and Constraints
It is important to comply with the design rules and constraints, such as differential pair routing, trace width control, trace length matching, minimum spacing rules, tuning and layer rules to provide high noise immunity.
Select the Right PCB Material
The performance of the PCB signals depends on the materials used on the PCB. For moderate speed, standard FR-4 materials are used in design. However, for high-speed designs, a dielectric with low loss is selected to maintain the signal integrity and reduce signal degradation. In general, materials with low dielectric dissipation factors, high thermal stability and high moisture absorbing characteristics are used in high-speed designs with the following objectives:
- To maintain low impedance and less signal distortion.
- To have minimal signal loss and signal attenuation.
- To support high operating temperatures of high-speed PCB designs.
- In general, high moisture absorption indicates long-term reliability and good electrical properties.
Proper Component Placement
While designing high-speed PCBs, it is crucial to place all components in the right position. The analog and digital parts are given a separate space, and the critical trace length is minimised to achieve high speed. The propagation delay and routing complexity can be reduced with effective component placement.
Key guidelines for component placement include:
- Decoupling capacitors are located near the IC power pins.
- Clock circuits are placed away from noise elements.
- In the case of high-density data and memory-bus routing, channel spacing is maintained.
High-Speed PCB Trace Routing Guidelines
High-speed trace routing is an essential process in designing high-speed PCBs. To develop high-speed trace routing:
- The traces are minimised and kept as short and straight as possible.
- The high-speed traces are not placed near the inductors or power sections of PCB circuits.
- Bending traces at a sharp 90° angle is avoided.
- Critical signal path vias should not be used.
- A continuous current return path must be developed.
- For a high-speed signal, the splitting of planes is avoided.
Simulation and Testing for High-Speed PCB Performance
Simulation and testing make a difference in the development of high-speed PCBs. By simulating signal integrity and power integrity before manufacturing, engineers can pinpoint issues like reflections, crosstalk, and impedance mismatches that might cause problems.
Common analysis methods include:
- Signal integrity simulation
- Power integrity analysis
- EMI/EMC simulation
- Eye diagram measurement
Once the PCB has been made, different instruments like oscilloscopes, vector network analyzers (VNA), and time-domain reflectometry (TDR) are employed to measure the real performance and confirm that the design complies with the necessary standards.
Applications of High-speed PCBs
Most of the modern electronics and communication designs utilise high-speed PCBs. Some applications of high-speed PCBs are:
Telecommunications

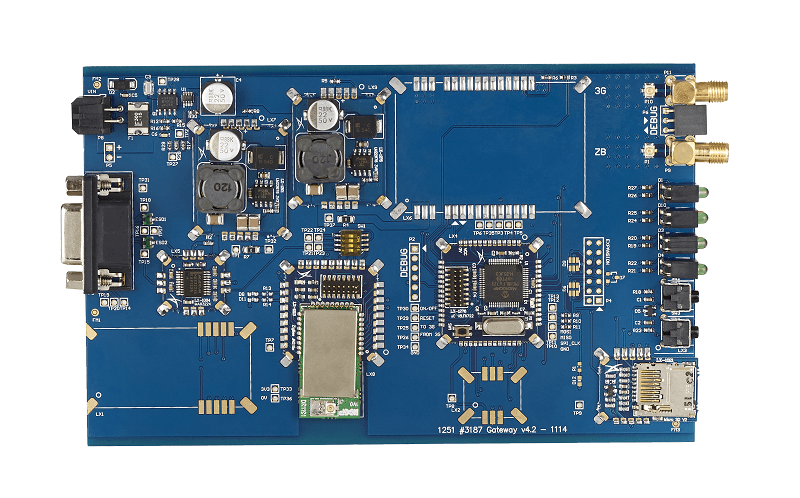

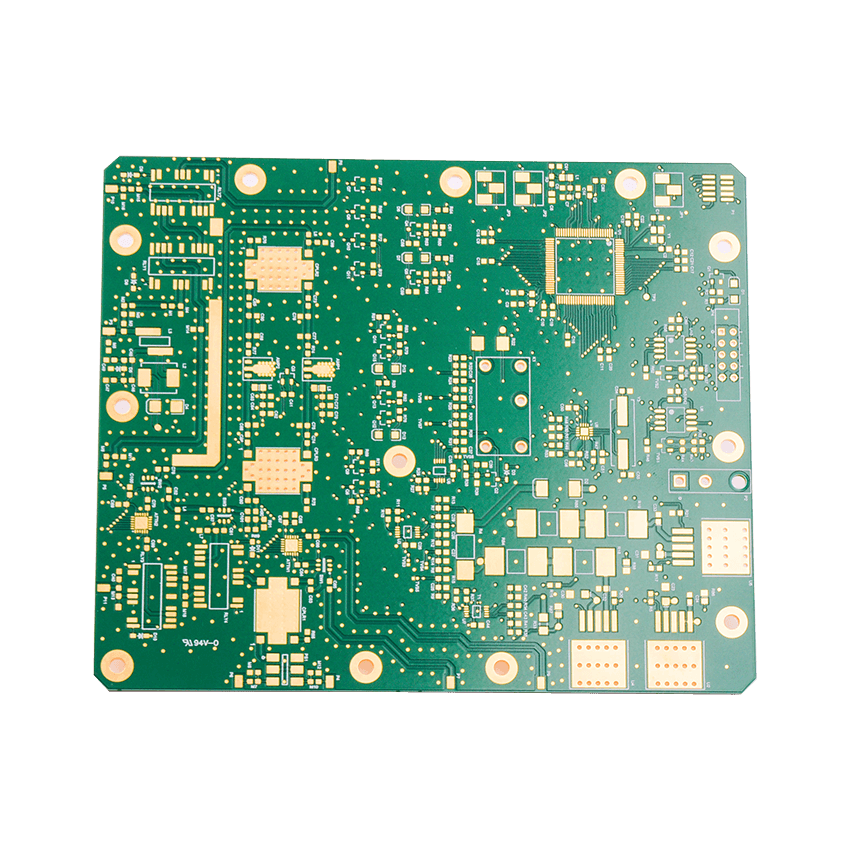

High-speed PCBs are widely used in networking devices to handle fast data communication during increased internet traffic.
- Examples: 5G communication, data centres, networking equipment, etc.
Medical Devices
High-speed PCBs are crucial in medical equipment to ensure reliability and accuracy in processing data.
- Examples: Real-time patient monitoring system, MRI, CT scans and ultrasounds.
Consumer Electronics
High-speed PCBs are also used in consumer electronics for a high rate of data transmission between the components.
- Examples: Smartphones, tablets, gaming laptops, etc.
Automotive Devices
In automotive devices, high-speed PCBs are required for high-performance data acquisition and response.
- Examples: Advanced Driver Assistance Systems (ADAS), infotainment Systems, etc.
Memory and Interfaces
High-speed PCBs are used in memory systems and different interfaces to ensure the storage and transmission of data at a high rate.
- Examples: DDR memory system, PCIe and USB interfaces.
Conclusions
In today’s technology-driven world, electronic systems demand rapid data transmission and reliable performance. So, high-speed PCBs play a vital role in this rapid advancement of technology. When the signal speed increases, the signal traces act as a transmission line, which needs signal integrity, proper grounding technique, and EMI and noise reduction.
By following proper high-speed PCB design guidelines, engineers can create stable, efficient, and reliable electronic products for advanced applications such as telecommunications, automotive systems, medical devices, and high-performance computing.
FAQs
A1: 90⁰ trace bends cause alteration in trace width that results in signal reflection and losses.
A2: Generally, 135⁰ can be used as an alternative trace bend for a smoother path, as the signal strength is better at this angle.
A3: Most high-speed PCB designs use approximately 50Ω impedance for single-ended signals and 100Ω impedance for differential pairs.
