What is an Attenuator?

An attenuator is an electronic tool whose function is to reduce the size of a signal while still preserving its appearance. It aids in preventing signal overloads as well as distortions by weakening the power of the signal to a particular extent. It is quite common to find attenuators being used for adjusting signal intensities and ensuring the ideal performance of electronic circuits in many instances.

Experience seamless sound control with the attenuator, your audio’s silent conductor. Perfect volume modulation is at your fingertips, ensuring every note is crystal clear. Say farewell to overpowering noise and embrace balanced, harmonious audio. Experience the journey of your listening with the attenuator`s precision.

An attenuator is a tool used to reduce signal strength without altering the way it looks with signal-distorting devices. It acts like a volume control knob, adjusting signal levels precisely. Commonly used in audio systems, it ensures balanced sound output without overpowering or distorting the audio. Attenuators help maintain clarity and quality in various applications by controlling signal levels effectively.

Functionality and Purpose of Attenuators

Attenuators hold a key role in electronic circuits as they reduce the size of signals and maintain their shape. The level of signal has to be tuned to fit certain requirements, necessitating such applications as telecommunication, radio frequency (RF), and audio systems, among others.

Attenuators are designed to fulfill several purposes within electronic systems. One primary purpose is to prevent signal overload by attenuating excessively strong signals to levels suitable for downstream components. Moreover, attenuators are used to match the impedance between various sections of a circuit, making the transmission of signals effective and preventing any reflection that may compromise the functioning of the circuit. In addition, attenuators are good as they can be used to regulate signal strength precisely, hence helping in adjusting system parameters that make a system function best.

attenuator - 15db N-male N-female

Mechanisms of Signal Control in Attenuators

Signal strength in electronic circuits is controlled by reducing their amplitude using resistor-based networks while maintaining fidelity. Attenuators achieve this in different ways. They can have the capability to change depending on the application, whether it requires this type of control or not. The main way of controlling signal power in electronic circuits is through the use of attenuators.

Attenuators are critical in managing signal levels, ensuring performance optimization, and preventing overload in electromechanical facilities through the use of active devices like MOSFETs or PIN diodes that change signal strength dynamically using control currents or voltages. These active attenuators are preferred in situations that require fine control over the strength of signals.

Factors Affecting Attenuator Performance

Several factors influence the performance of attenuators in electronic circuits. One significant factor is the frequency range over which the attenuator operates. It is crucial to opt for suitable frequency characteristic attenuators that can maintain stable performance to ensure precise signal control throughout this range.

Additionally, the performance of an attenuator is determined by its attenuation accuracy and linearity. Accurately, the attenuator should decrease the signal intensity by the specified value without significant deviations or nonlinearities. For instance, if attenuation inaccuracy is poor or nonlinearity exists, this could lead to signal distortion or inaccurate data, thus having serious implications for how well other parts function together in an electronic system. Therefore, choosing attenuators with high accuracy as well as those that are linear enough becomes very important for an AC.

Attenuator Installation and Setup Tips

Attenuator installation involves connecting the device between the signal source and the load. Optimal performance requires that the impedance be matched well. To minimize degradation of signal strength as near as possible should be sited an attenuator. To ensure no motion might interfere with its efficacy, firmly fix the attenuator.

Manufacturer guidelines: Carefully follow manufacturer instructions for proper installation and configuration.
Testing: Following the installation process, a test should be carried out by you with the aim of determining whether the attenuator is functioning properly or not.
Maintenance: Make sure that you look into the attenuator often so that you can solve any problems that may arise, thus making it more effective.

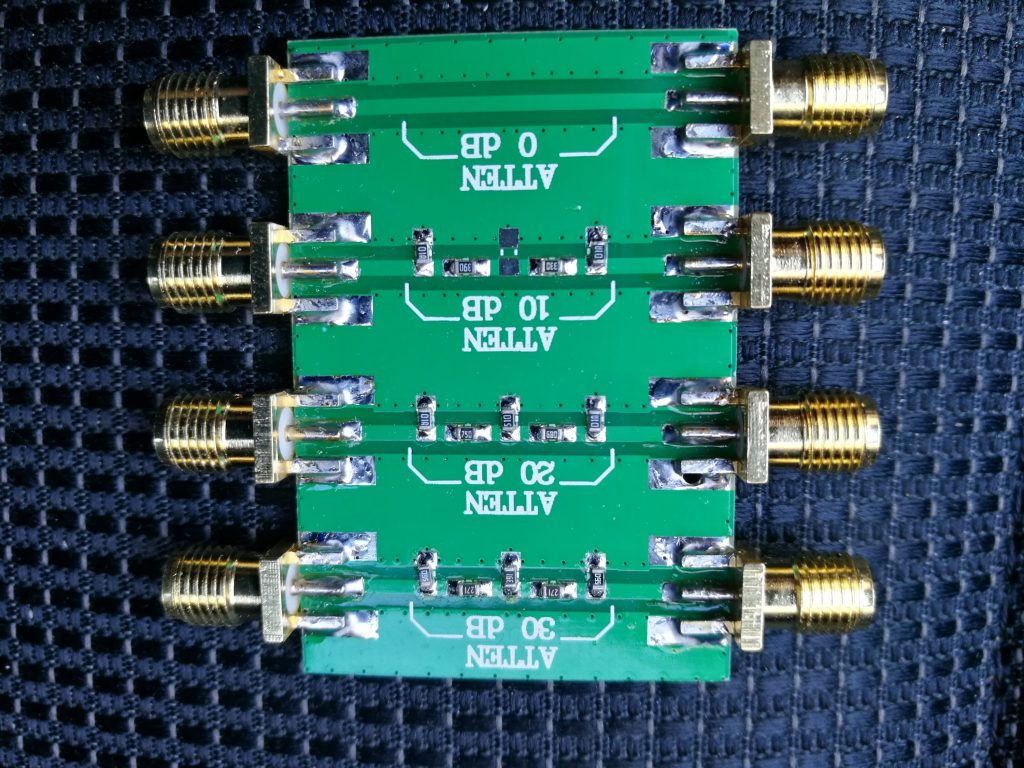

attenuators on a PCB

Common Attenuator Issues and Solutions

Attenuators can encounter common issues that affect their performance. Signal distortion is when the attenuator modifies the signal waveform, thus distorting the output quality. Signal reflections and degradation of transmission quality may also occur due to impedance mismatches.

Signal distortion can be handled by carefully selecting attenuators that have low distortion characteristics and ensuring that the attenuator and system are properly impedance-matched. Additionally, implementing signal conditioning techniques can help minimize distortion. For impedance mismatches, choosing attenuators with impedance ratings that match those of the system is crucial. Using impedance-matching techniques such as matching transformers or baluns can also minimize signal reflections and maintain transmission quality.

Conclusion

Attenuators are significant parts of electronic devices because they help maintain accuracy during processing even when adjustments have been made to their intensities without changing their shapes or forms. They are important because they can be applied in different fields such as telecommunications, art, and science, among others.

There are quite a number of alternatives present when it comes to attenuators, ranging from fixed ones to variable types that make the adjustment of signal levels possible following specific requirements. These attenuators have proven to offer reliable and consistent performance in electronic systems through their capability to attenuate signals all along while still ensuring signal integrity.

FAQs about Attenuators

Q1: Where are attenuators used?

Audio systems, telecommunications networks, testing equipment, and scientific instruments are some of the areas where reducers are frequently employed.

Q2: Why are attenuators necessary?

There is a need for attenuators in order to avoid signal overload, preserve signal quality, and modify signal intensities as per particular demands.

Q3: How do attenuators work?

Attenuators work by using a small amount of power from the signal; this decreases the signal’s amplitude but does not rewrite its waveform.

Q4: What are the types of attenuators available?

The various kinds of attenuators are fixed ones, variable ones, and digital ones, each having specific uses and levels of adjustable attenuation.
