Thin-Film Circuit Board Basics

Thin Film Circuit Board - RF PCB

Table of Contents

Thin-film technology is a field that involves the deposition of extremely thin layers of material onto a substrate or within a device. These films can range from a few nanometers (nm) to several micrometers (µm) in thickness and are used to create various electronic, optical, and mechanical properties that differ significantly from the bulk material.

Thin Film Deposition Techniques

Physical Vapor Deposition (PVD)

The vaporized atoms then travel through a vacuum chamber and condense onto the substrate, forming a thin film. PVD offers several advantages, including precise control over film thickness, excellent adhesion to the substrate, and the ability to deposit a wide range of materials like metals, alloys, and ceramics. This versatile technique finds applications in industries such as electronics, optics, automotive, and aerospace, where thin films with specific properties are required for various functionalities, including conductivity, reflectivity, hardness, and corrosion resistance.

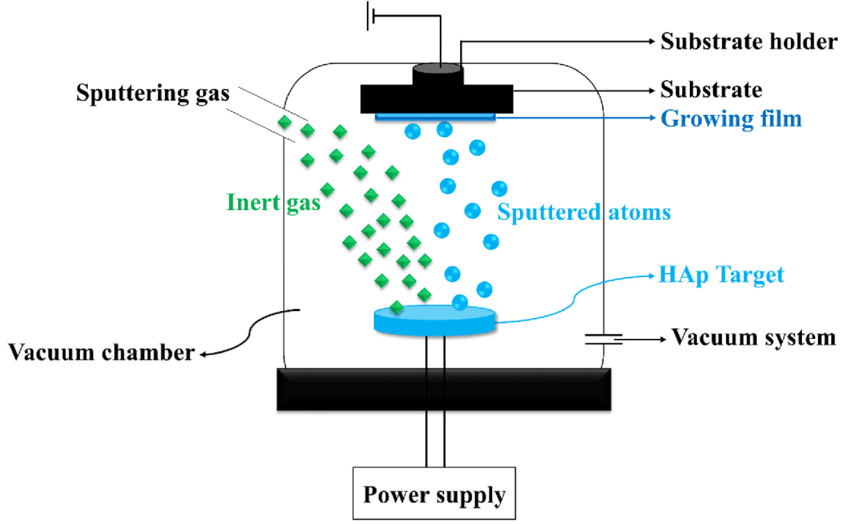

physical vapor deposition PVD process for deposition
Physical Vapor Deposition PVD Process for Deposition

Chemical Vapor Deposition (CVD)

Chemical Vapor Deposition (CVD) is a sophisticated method used to deposit thin films onto substrates in various industries. It involves the reaction of gaseous precursor molecules, carrying the desired deposition material, on the substrate surface. These precursor molecules decompose and react at elevated temperatures, resulting in the deposition of a solid film.

CVD offers precise control over film thickness, uniformity, and composition, making it suitable for applications requiring high-quality coatings with tailored properties. The versatility of CVD makes it indispensable in industries such as semiconductor fabrication, optical coatings, and thin-film solar cells, where the deposition of uniform and precisely engineered thin films is paramount for achieving optimal device performance and functionality.

Chemical Vapor Deposition - CVD Process in Semiconductors
Chemical Vapor Deposition - CVD Process in Semiconductors

Molecular Beam Epitaxy (MBE)

Molecular Beam Epitaxy (MBE) is an advanced technique used to grow thin films with atomic precision. It involves the deposition of materials onto a substrate in an ultra-high vacuum environment. During MBE, individual atoms or molecules are precisely evaporated from separate sources and directed towards the substrate. The atoms or molecules then condense and arrange themselves in a controlled manner, forming a crystalline film with exceptional structural integrity.

MBE is renowned for its ability to create complex and high-quality semiconductor structures, making it an essential tool in the development of advanced electronic and optoelectronic devices. This technique is widely used in research laboratories and semiconductor industries to fabricate devices such as transistors, laser diodes, and quantum dots.

Atomic Layer Deposition (ALD)

Atomic Layer Deposition (ALD) is a highly precise thin-film deposition technique used in various industries. It involves the sequential deposition of atomic layers onto a substrate surface. ALD utilizes self-limiting surface reactions, where precursor molecules are introduced one at a time and react with the substrate in a controlled manner. After each deposition step, excess precursor is purged from the chamber before introducing the next precursor, ensuring precise control over film thickness and uniformity.

ALD offers exceptional conformality, enabling the deposition of thin films on complex three-dimensional structures with high aspect ratios. This technique is widely used in applications that require precise and uniform coatings, such as semiconductor fabrication, energy storage devices, and protective coatings for sensitive materials.

Thin-Film Applications

Thin-film technology finds numerous applications across various industries, thanks to its versatile nature and precise functionality. Let’s explore some of the key application areas where thin-film technology plays a pivotal role:

1. Optoelectronics and Displays: Thin-film technology is extensively used in the manufacturing of optoelectronic devices, such as flat-panel displays (LCD, OLED), touchscreens, and photovoltaic cells (solar panels). Thin-film coatings enable the creation of transparent conductive layers, anti-reflective coatings, and light-emitting layers, enhancing the performance and visual quality of these devices.

2. Semiconductors and Integrated Circuits: Thin-film technology plays a crucial role in the production of semiconductors and integrated circuits (ICs). It enables the deposition of thin layers of materials, such as silicon dioxide (SiO2) or silicon nitride (Si3N4), as insulating layers or gate dielectrics. Thin films also facilitate the creation of conductive pathways, interconnects, and metalization layers in IC fabrication processes.

ICs on a circuit board
ICs on a Circuit Board

3. Optics and Photonics: Thin films are extensively used in optical components and systems. They enable the production of anti-reflective coatings on lenses and mirrors to minimize light reflection and maximize light transmission. Thin films are also employed in the creation of optical filters, beam splitters, waveplates, and dichroic mirrors, allowing precise manipulation and control of light in various applications like cameras, telescopes, microscopes, and fiber optics.

4. Sensors and Biosensors: Thin-film technology finds applications in the development of sensors and biosensors for a wide range of industries. Thin films can be used to create sensitive layers that interact with target analytes or environmental conditions, enabling the detection of physical, chemical, or biological parameters. Examples include gas sensors, humidity sensors, biosensors for medical diagnostics, and environmental monitoring devices.

5. Energy Storage and Conversion: Thin films play a vital role in energy storage and conversion technologies. In batteries and fuel cells, thin films are used as protective coatings, separator materials, and catalyst layers to enhance performance, durability, and efficiency. Thin-film solar cells, such as thin-film photovoltaics (TFPV) based on materials like amorphous silicon (a-Si) or cadmium telluride (CdTe), offer an alternative to traditional silicon-based solar cells.

6. Microelectromechanical Systems (MEMS): Thin-film technology is integral to the fabrication of MEMS devices. MEMS combine mechanical and electrical components on a small scale, enabling the creation of sensors, actuators, microvalves, and microfluidic systems. Thin films are used to form structural layers, piezoelectric materials, and conductive traces in MEMS fabrication, enabling precise control and manipulation of physical phenomena at the microscale.

The technology is continually evolving, with new materials and deposition techniques being developed to improve performance and enable new applications. Thin-film technology is a cornerstone of modern manufacturing and research, underpinning advancements in areas such as renewable energy, electronics, and materials science.

Thin-Film Circuit Boards

Thin-film circuit boards are a specialized type of printed circuit board (PCB) that utilizes thin-film technology for the deposition of conductive and insulating materials. They are designed to offer precise and reliable performance in a variety of electronic applications.

The thickness of thin-film circuit boards varies depending on the specific application and design requirements. Generally, TFCBs are designed to be extremely thin compared to traditional PCBs. The typical thickness of a TFCB ranges from a few micrometers (µm) to tens of micrometers.

The conductive thin-film layer, which is usually made of metals like gold, silver, or copper, is typically in the range of 0.1 µm to 2 µm. The insulating layers, such as dielectrics, can have thicknesses ranging from 0.5 µm to 10 µm or more, depending on the desired electrical properties and isolation requirements.

Thin film thickness range
Thin Film Thickness Range

Construction and Manufacturing

TFCBs consist of a thin layer of conductive material, usually metal, deposited onto a substrate material such as ceramic, glass, or flexible polymer. The deposition process is typically done through techniques like sputtering or evaporation. Additional layers of insulating material, such as dielectrics, are also deposited to create the necessary circuitry and isolation. The manufacturing process requires high precision and control to achieve the desired thin-film thickness and pattern accuracy.

Sputtering and evaporation represent two widely employed methods in the fabrication of thin-film circuit boards. During sputtering, energetic ions are directed towards a target material, causing atom dislodgment from the target surface. These atoms subsequently adhere to the substrate material, forming a thin film of precise thickness.

On the other hand, evaporation entails the controlled heating of the target material, causing its vaporization. The resulting vapor atoms then condense onto the substrate, generating the desired thin film. Both techniques necessitate meticulous regulation of deposition parameters, including temperature, pressure, and deposition rate, to achieve the desired thin-film thickness and quality. Sputtering and evaporation techniques offer efficient and dependable means for depositing conductive and insulating materials onto substrates, thereby facilitating the production of thin-film circuit boards exhibiting superior performance attributes.

Miniaturization and High-Density Packaging

Thin-film circuit boards are designed to fit in tight spaces while still delivering exceptional performance. By utilizing thin-film technology, TFCBs allow electronic components to be densely packed together, enabling the creation of compact devices without compromising functionality.

TFCBs excel in high-density packaging by offering precise and reliable circuitry in a limited space. Their thin and compact design allows for intricate circuit patterns and complex interconnects. With their exceptional miniaturization capabilities, TFCBs enable the integration of numerous electronic components, such as microprocessors, memory chips, sensors, and more, within a single device.

This high-density packaging not only saves physical space but also enhances the overall performance and efficiency of electronic systems. By reducing the distance between components, TFCBs minimize signal losses, improve signal integrity, and enable faster and more efficient data transmission. The result is a new generation of compact and powerful devices that have transformed industries and made our lives more connected and convenient.

High-Frequency and RF Applications

TFCBs excel in high-frequency and radio frequency (RF) applications due to their low signal losses, minimal parasitic capacitance, and excellent impedance control. They can efficiently handle high-frequency signals and microwave frequencies, making them suitable for applications like RF amplifiers, filters, mixers, oscillators, and satellite communication systems. The precise control of thin-film thickness and dielectric materials allows for accurate impedance matching and signal integrity.

Thick Film PCB
Thick Film PCB

Customization and Design Flexibility

TFCBs offer significant design flexibility, allowing for customized circuitry and tailored performance characteristics. The thin-film deposition process enables the creation of precise patterns, complex interconnects, and multi-layer structures with high precision and repeatability. Designers can optimize the layout, impedance matching, and electrical properties to meet specific application requirements. This versatility makes TFCBs an ideal choice for specialized and high-performance electronic systems.

Thin-film circuit boards have become indispensable in various industries. Their abilities make them a preferred choice for demanding applications. As technology continues to advance, TFCBs will play an increasingly significant role in enabling innovative electronic solutions across a wide range of industries.

Looking for a customized PCB? ELEPCB, as a professional and innovative PCB manufacturer, provides a one-stop service from PCB design to PCB Fabrication to PCB Assembly. We value every customer’s experience on PCB Quotation. With 24/7 responses and 100% customer-oriented, we can build a better electronic world together.

Final Thoughts

Thin-film technology is a key driver of advanced electronics, offering benefits such as miniaturization, high-frequency operation, temperature stability, and design flexibility. Thin-film circuit boards enable precise and reliable circuitry, making them essential in industries like aerospace, telecommunications, and consumer electronics. With customization options and ongoing advancements, thin-film technology paves the way for smaller, faster, and more reliable electronic devices.
