3D profilometry technology is widely used in various industries, sciences, and technologies, primarily for inspection and measurement purposes. Whether manual, visual, AOI, or X-ray inspection, increasingly advanced technology caters to the evolving needs of the PCB industry. Conventional inspection techniques are often not competent to identify defects like warpage and improper soldering joints mainly in high-speed and high-density electronics.
ELE PCB will introduce the technology of 3D laser profilometry, covering its applications, benefits, comparisons with other inspection methods, and practical tips.
What is 3D Profilometry?
3D profiling is a technique used to measure the surface characteristics and geometry of an object. It is a technique that employs high-precision, non-contact optical measurement. Unlike standard metrology tools, 3D profilometry employs structured light or laser triangulation to measure surface profiles without physically contacting the sample.
The technique consists of projecting a patterned structure (most frequently light grids or fringe patterns) on the surface of the PCB. A sensor records the reflected light after a laser beam is directed onto the object’s surface. The elevations and contours of the object can be precisely determined from the fluctuations in the reflection. High-resolution cameras record these deformations, which are then processed with software algorithms to reconstruct the full 3D surface profile with submicron accuracy.
The advantages of using 3D laser profilometry include:
- Multi-visual: Detailed 3D profiles of the PCB pads and tracks can be created, suitable for detailed inspection.
- Enhanced Productivity: Automated solutions decrease the time for inspection and increase volume.
- Early Fault Detection: Helps find problems in time in production, which can minimize waste and rework.
Applications for PCB Inspection
3D profile and laser measurement techniques have been incorporated into the present PCB inspection. This enables manufacturers to identify micro-scale defects invisible to traditional inspection methods, thereby improving reliability and increasing product volume. The following are the applications of the above technologies in the PCB manufacturing process:
Measuring PCB Warpage
PCB Warpage means the bending or twisting in a PCB that is caused by thermal stress, a mismatch between the various board materials, or improper way the PCB was stored after assembly. Even a slight warpage can cause poor solder joint formation, resulting in the electrical connection to work intermittently or fail altogether.3D optical profilometry scans the board’s surface by emitting a laser beam. The degree of warpage affects the way the laser beam is reflected. By analyzing these variations, the device can quickly and accurately determine the board’s warpage.
Solder Joint Inspection
The integrity of the solder joint(s) is essential for both electrical continuity and mechanical stability. Conventional 2D inspection systems are only visual, so it is difficult to determine the volume, height or depth of the solder joint. Solder joints are analyzed volumetrically with 3D profilometry – quantifying such characteristics as:- Solder volume
- Height and wetting angles
- Formation of a bridge between the leads
- Presence of Voids or Inadequate filling.
Verification of Component Placements
3D measurement methods are used to verify the location and orientation of parts for errors in positioning that may impede performance.Key verifications include:- Height and tilt angle of components
- X-Y alignment with pad layout
- Skewed or rotated parts
- Floating leads or tombstoning
Surface Roughness Analysis
Profilometry supplies objective surface-roughness measurements useful for process control and quality assurance. Using an optical profilometer can help ensure:- Solderability: Too smooth could result in a weak joint, a lack of solder wetting, and too rough could trap flux or air, causing voids.
- Adherence: Protective coatings such as solder masks or conformal coatings need a uniform surface profile to ensure proper adhesion and coverage.
- Etching Uniformity: PCB etching is susceptible to surface roughness that will contribute to non-uniform etching of copper, which affects the circuit line definition and operation.
- Electrical Performance: The surface of the board has an impact on the impedance/signal integrity of high-frequency or RF PCBs.
Measurement of Vias
The two most common ways of fixing components to circuit boards are through-hole technology (THT) and surface mount technology (SMT). THT uses perforated through holes, while SMT uses blind through holes that enter the panel only at a certain depth to connect the different layers of the internal circuits. The use of 3D profilometry allows manufacturers to detect the depth of the hole, and identify any potential issues within it, without causing any damage to the PCB.
Conventional Inspection Methods Comparison
Inspection Method | Contact/Non-Contact | 2D/3D Analysis | Detectable Defects | Accuracy | Cost | Optimal Application |
Manual Visual Inspection | Contact | 2D | Severe warpage Visible damage | >±50μm (height errors) | Low labor costs but high hidden costs | Sampling at any stage |
2D AOI | Non-Contact | 2D | Component misplacement Solder bridging (2D) | ±20μm (planar defects) | Medium | Post-SMT placement |
X-ray Inspection | Non-Contact | 2D/3D | BGA voids Insufficient hole fill | ±5μm (internal defects) | High | Post-reflow |
3D Profilometry | Non-Contact | 3D | Solder paste thickness/volume Lead coplanarity (±10μm) PCB micro-warpage (0.1mm/m²) | Z-axis: ±1~3μm (3D topography reconstruction) | High | Post-stencil printing (SPI) Pre-reflow (warpage) Critical component placement |
Practical Tips:
Selection of 3d profilometry device
- For high-precision applications such as BGA or 0201 components, it’s essential to use hybrid laser and structured light systems(e.g., Omron VT-S730). The measuring tolerance requirements of such components are ≤10μm.
- When the size of panels is >450mm, you’d better use wide-scan systems (e.g., Koh Young KY8030-2 with 510mm scan width) to cover the panels. For example, server and backplane PCBs are of large panels.
Position in the manufacturing process
If applied in the solder paste inspection (SPI), the position of 3D profilometry is better after the solder printer process:

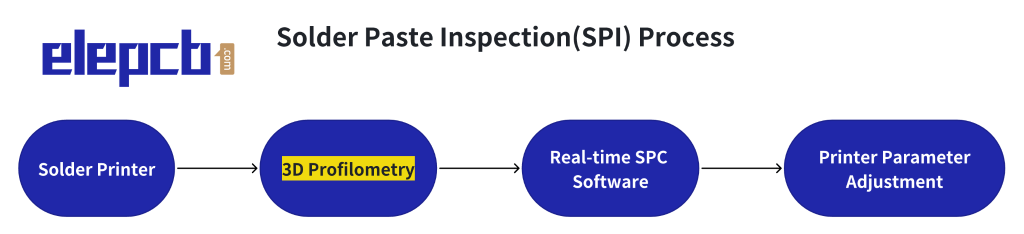

Solder Printer → 3D Scanner → Real-time SPC Software → Printer Parameter Adjustment
If applied in warpage monitoring implementation, 3D profilometry can be at two positions:
Pre-Reflow Scanner → Reflow Oven → Post-Reflow Scanner
- Pre-reflow scan: Establish baseline panel flatness
- Post-reflow scan: Measure CTE-induced deformation
Emerging Trends in PCB Inspection
There is likely to be greater integration of 3D profilometry with laser measurement used in PCB inspection, as technology advances and electronic components become more complex. Future trends include:
- Integration of AI
Use AI algorithms that can analyze inspection data, increasing the accuracy of detecting defects and predictive maintenance.
- Automation Development
Creation of adaptive, fully automated inspection solutions for different PCB designs and complexities.
- Miniaturization
Developing small-sized inspection tools needed for high packing density and minute PCBs.
- Real-time monitoring
Developing monitoring systems with online access to inspection during production, to take direct action during production when quality problems occur.
Conclusion
With the development of 3D profilometry and laser measurement, PCB surface inspection has been transformed into an accurate, non-contact, all-around analysis. These technologies enable defect detection, increased effectiveness of the manufacturing process, and product reliability.
ELE PCB specializes in advanced PCB inspection systems by adopting the latest technology to provide a high-quality PCB. We attach great importance to the quality of our products, keeping strict quality control throughout the manufacturing process to ensure products’ precision and durability. Contact us to know more about how our services can help you and meet your needs.
FAQs
A1: Issues such as component height, tilt, or variation in volume cannot be easily detected using 2D Automated Optical Inspection (AOI). 3D profilometry provides depth insight detecting issues such as inadequate solder, lifted leads, or tilted components that lead to field failures.
A2: 3D profilometry and laser measurement will be available for checking coplanarity and alignment at the time of placement. These techniques are used to detect and compensate for misalignments before reflow soldering.
A3: Laser-based inspection readily identifies surface irregularities, e.g., bulges or height variation, suggestive of internal stress. But inside, delamination is more effectively detected with X-ray inspection. Nevertheless, 3D profilometry offers useful early signs of these defects.
