Essential Guide to Protect Circuit Boards

pcb potting

Table of Contents

Printed Circuit Boards (PCBs) are the fundamental part of any electronics. They help connect various electronic components. Failing to protect your PCB can lead to multiple issues, such as signal degradation, short circuits, and component damage. It can also lead to data loss, device malfunctions, and more.

Thus, you have to take protective measures to protect your PCB. You must protect your PCB from factors like electrical and mechanical stress, external influences, extreme temperatures, etc. Protecting the PCB from these factors ensures a reliable and durable PCB. This article will discuss various methods to protect your PCB from multiple factors.

Environmental Measures

Environmental factors like dust, humidity, and temperature can have an adverse effect on your PCB. Thus, it is important to implement effective environmental protection to safeguard your PCB from these factors.

Conformal Coating

The conformal coating consists of acrylic, silicone, polyurethane, and epoxy. It helps protect PCBs from environmental influences. It can be applied by brushing, spraying, or dipping, and it protects against moisture, dust, and chemicals. This provides the external layer to protect your PCB from external environmental factors. While reliable, it may increase thermal resistance and make rework difficult.

Encapsulation and Potting

Encapsulating and potting PCBs in protective materials, including epoxy, silicone, and polyurethane, provides excellent protection against environmental risks. Encapsulation exposes components for examination, while potting encloses the PCB. Both technologies employ casting or molding for durability and electrical insulation.


Next is the sealing method, which can protect your PCB from moisture, dust, and pollutants entering its enclosures. They safeguard electronic components in various conditions, extending their lifespan. For best performance, material selection incorporates temperature range and chemical resistance.

Humidity Control

Humidity management is crucial to prolong electrical components, especially in moist and damp conditions. Maintaining PCB integrity requires humidity management to prevent moisture damage.

In storage facilities, dehumidifiers and moisture-absorbing materials manage humidity. This protects PCBs from corrosion and electrical issues, ensuring dependability and performance.

PCB Protection in Design Considerations

Designing PCBs with enhanced protection involves several key strategies to ensure reliability and performance. Here are some essential considerations:

Component Placement and Layout

Optimal Component Placement:

  • Strategic Positioning: Place components in a way that minimizes the length of critical traces. Keep high-frequency components close to their respective connectors to reduce potential signal degradation.
  • Heat-Sensitive Components: Position heat-sensitive components away from heat-generating parts to prevent thermal damage.

Proper Spacing and Trace Routing:

  • Adequate Spacing: Ensure sufficient spacing between components to avoid electrical shorts and improve manufacturability.
  • Efficient Trace Routing: Use short, direct routing paths for signal traces to reduce inductance and resistance. Avoid sharp angles in trace routing to minimize signal reflection.

Reducing Noise and Interference:

  • Grounding: Implement a solid ground plane to provide a return path for signals and reduce electromagnetic interference (EMI).
  • Decoupling Capacitors: Place decoupling capacitors close to the power pins of integrated circuits (ICs) to filter out noise.

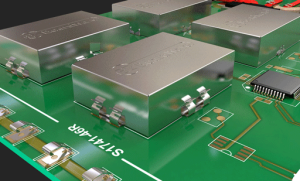

Ground Planes and Shielding

Benefits of Using Ground Planes:

  • Improved Signal Integrity: Ground planes help maintain signal integrity by providing a low-impedance path for return currents.
  • EMI Reduction: They act as shields against electromagnetic interference, protecting sensitive signals.

Effective Shielding and Grounding:

  • Layer Stack-Up: Use a multi-layer PCB with dedicated ground and power planes to isolate signal layers and reduce noise.
  • Shielded Traces: For high-speed signals, route traces between ground planes to shield them from external noise.

Good Grounding Practices:

  • Single Ground Point: Use a single ground point to prevent ground loops, which can introduce noise.
  • Stitching Vias: Use stitching vias to connect ground planes across different layers, ensuring consistent grounding.

Thermal Management

Improving Thermal Performance:

  • Component Placement: Place heat-generating components like power regulators and processors in areas with good airflow.
  • Heat Sinks and Thermal Pads: Heat sinks and thermal pads are used to dissipate heat away from critical components.

Thermal Vias and Copper Pours:

  • Thermal Vias: Implement thermal vias under heat-generating components to transfer heat to the other side of the PCB or to a dedicated heat spreader layer.
  • Copper Pours: Large copper pours are used to spread heat across the PCB, reducing hotspots.

Simulation and Testing:

  • Thermal Simulation: Conduct thermal simulations during the design phase to predict temperature distribution and identify potential thermal issues.
  • Prototype Testing: Perform real-world testing on prototypes to validate thermal performance and make necessary adjustments.

Mechanical Protection

Safe Handling Procedures

Keeping printed circuit boards (PCBs) safe during handling and storage is vital to their longevity and performance. Here are some tips to follow:

Protective Packaging: To protect PCBs at all handling stages, use high-quality foam inserts and antistatic bags. Ensure that packaging materials are specifically designed for electronic components.

Vibraryional Damping: Use vibrational damping materials like foam or rubber in PCB enclosures to absorb and dissipate the vibrations.

Shock and Rigid Mounting: Use a shock absorbing and rigid mounting system to secure your components to from mechanical shock and vibrations.

Lifting, Stacking, and Transportation: Use materials like foam inserts or antistatic mats between PCBs to avoid direct contact and scratches. Ensure PCBs are placed in protective carriers or trays that minimize movement and vibration.

Proper Shelving and Storage Containers

Effective storage solutions are key to preventing physical damage to PCBs:

Sturdy Shelving and Storage:

  • Use strong shelving units that can support the weight and size of your PCB inventory without sagging or collapsing.
  • Use containers that guard against dust, moisture, and physical impact.

Stackability and Weight Distribution:

  • Ensure containers or trays are evenly distributed to avoid tipping or collapsing.
  • Avoid stacking too high to reduce the risk of toppling, and use labels to indicate maximum stack height.

Dividers or Trays:

  • Use dividers or compartmentalized trays to keep PCBs from moving and colliding during storage.
  • Ensure dividers are made from non-conductive, non-abrasive materials to protect the PCBs.

Electrical Protection Measures

ESD-Safe Handling

Electrostatic discharge (ESD) can severely damage PCBs, so ESD-safe practices are essential:

ESD-Safe Practices:

  • Strict Protocols: Implement strict ESD-safe handling protocols to minimize the risk of damage.
  • Regular Audits: Continuously monitor and audit ESD protection measures to ensure compliance and effectiveness.

ESD-Safe Environment:

  • Proper Equipment: Equip work areas with ESD-safe flooring and workbenches to safely dissipate static electricity.
  • Personnel Grounding: Ensure that all personnel handling PCBs wear grounding devices like wrist straps and heel straps.

Surge and Overvoltage Protection

Overvoltage is the next issue in PCB. Protecting PCBs from electrical surges and overvoltage is crucial to maintaining their reliability:

Protection from Surges and Overvoltage:

  • Install surge protectors and voltage regulators in storage and handling areas to safeguard PCBs from unexpected electrical spikes.
  • Ensure all electrical equipment in PCB handling areas is properly rated and maintained.

Surge Protectors and Voltage Regulators:

  • Place surge protection devices at critical points to absorb and dissipate excess voltage.
  • Use voltage regulators to maintain a consistent and safe voltage level for all electronic handling equipment.

Grounding of Storage Racks and Equipment:

  • Ensure all storage racks and handling equipment are properly grounded to prevent static electricity build-up.
  • Regularly inspect grounding connections to ensure they are effective and intact.

PCB Warehouse Considerations

Effective warehouse and storage protection safeguards PCBs against environmental hazards and physical damage. Sturdy shelving and storage containers ensure proper handling and minimize the accident risk during transportation and storage.

Climate-controlled environments and temperature monitoring systems prevent temperature fluctuations that could compromise PCB integrity. These practices maintain PCB quality, ensuring their reliability and longevity throughout the storage period.


Thus, protecting your PCB ensures its longevity and reliability. It should be protected from all damage-causing factors to ensure its life span and reliability. At ElePCB, we use all protective measures to safeguard your PCB and deliver the most reliable board for your project.
