What is PCB Via in Pad?

What is PCB Via in Pad - Annular ring description

Table of Contents

Printed Circuit Boards (PCBs) facilitate the interconnection of various components. To optimize their design, engineers often employ innovative techniques such as PCB Via in Pad (VIP). This method involves placing vias directly within the component solder pads, offering numerous advantages in terms of space utilization, signal integrity, thermal management, and component stability.

An Introduction to IPC - 4761

IPC-4761, titled “Design Guide for Protection of Printed Board Via Structures,” is a standard published by the Association Connecting Electronics Industries (IPC) that specifically addresses the topic of Via-in-Pad (VIP) design and assembly considerations. IPC-4761 provides guidelines and requirements for the design, fabrication, and assembly of PCBs incorporating the VIP technique.

ipc - 4761
IPC- 4761

Key Aspects of IPC-4761

Via Structure Design

The standard addresses various aspects of via structure design, including size, aspect ratio, pad and annular ring dimensions, and spacing between vias. It provides guidelines to ensure proper electrical and mechanical performance of vias in different PCB applications.

Via Protection

IPC-4761 emphasizes the importance of protecting vias from external influences, such as moisture, contamination, and mechanical stress. It provides recommendations for implementing protective measures, such as conformal coatings, solder mask coverage, and via fill materials, to enhance the reliability and longevity of the vias.

Thermal Considerations

The standard also covers thermal considerations related to via structures. It addresses issues such as thermal management, heat dissipation, and thermal relief techniques to prevent excessive heat accumulation and potential damage to the vias.

Signal Integrity

IPC-4761 provides guidelines to maintain signal integrity in designs with via structures. It covers aspects such as impedance control, controlled impedance routing, and the use of ground and power planes to minimize signal degradation and ensure consistent electrical performance.

Reliability Testing

The standard offers guidance on reliability testing methodologies specific to via structures. It outlines various test methods, such as thermal cycling, thermal shock, and mechanical stress testing, to assess the durability and robustness of the via structures under different environmental conditions.

IPC-4761 serves as a valuable resource for PCB designers, manufacturers, and assemblers involved in via structure design and PCB fabrication. By following the guidelines and recommendations outlined in the standard, stakeholders can ensure the reliability, signal integrity, and longevity of the via structures, minimizing the risk of failures and optimizing the overall performance of the printed boards.

Relationship to Via-in-Pad (VIP)

IPC-4761 provides valuable guidelines for via design, including dimensions, aspect ratios, and spacing, specific to VIP designs. These recommendations help ensure that vias in component pads meet the necessary electrical performance and reliability requirements. Furthermore, IPC-4761 addresses the importance of via protection in VIP designs. It offers guidance on protective measures such as conformal coatings, solder mask coverage, and via fill materials to safeguard the vias from moisture, contamination, and mechanical stress, enhancing their long-term reliability and preventing potential failures.

Additionally, IPC-4761 provides assembly guidelines tailored to VIP designs. It offers recommendations for stencil design, solder paste deposition techniques, reflow profiles, and inspection criteria specific to VIP designs. IPC-4761 acts as a comprehensive resource that establishes best practices and standards, facilitating the effective implementation of VIP designs and contributing to the overall reliability, signal integrity, and performance of the PCBs.

Check out the documentation here: IPC-4761.pdf

What is a Via-in-Pad?

What is PCB Via in Pad - Traditional Via and Via in Pad
What is PCB Via in Pad - Traditional Via and Via in Pad

A Via-in-Pad (VIP) is a design technique in which vias (electrical connections between different layers of a printed circuit board) are placed directly within the solder pad of a surface mount component. This approach offers several advantages, such as improved signal integrity, reduced inductance, and smaller PCB footprints.

The Challenges of Via-in-Pad Technology

VIP design also presents challenges related to assembly, soldering, and reliability. Let’s explore these challenges in detail:
1. Assembly Challenges:
Solder Paste Deposition: Placing vias in the component pads can obstruct the proper deposition of solder paste, leading to inconsistent solder volumes and insufficient wetting during the reflow process. This can result in solder joint defects, including insufficient solder, solder bridging, or tombstoning.

Component Alignment: VIP design may pose challenges during component placement and alignment due to the presence of vias within the pads. Ensuring accurate component positioning becomes crucial to avoid misalignment, which can lead to soldering issues and compromised electrical connections.

2. Soldering Challenges:
Solder Joint Quality: The presence of vias within the solder pads can affect the formation of reliable solder joints. Issues such as voids, insufficient wetting, or solder ball formation may arise, impacting the overall solder joint quality and long-term reliability of the assembly.

Thermal Dissipation: VIP designs can affect the thermal dissipation capability of the solder joint. Vias placed within the pad reduce the available area for heat transfer, potentially leading to increased thermal resistance and elevated temperatures at the solder joint interface.

3. Reliability Challenges:
Solder Joint Integrity: The integrity of solder joints in VIP designs may be compromised due to factors such as thermal stress, mechanical stress, or differential coefficients of thermal expansion (CTE) between the PCB and components. These factors can contribute to solder joint cracking, delamination, or fatigue failure over time.

Electrical Performance: While VIP designs can enhance signal integrity, improper implementation or solder joint defects may introduce signal degradation or impedance variations. These issues can impact the electrical performance of the circuit, leading to signal loss, reduced reliability, or malfunctioning of the electronic device.

To address these challenges, several techniques and considerations are employed in VIP design and assembly:
– Optimized pad and via sizes to ensure proper solder paste deposition and sufficient electrical connection.
– Stencil design modifications to accommodate vias within the solder paste pattern.
– Controlled reflow profiles to minimize thermal stress and ensure proper solder joint formation.
Inspection and testing methods, including X-ray inspection and electrical testing, to identify and address potential defects or reliability concerns.
By following industry standards, such as IPC-4761, and employing best practices in VIP design and assembly, these challenges can be mitigated, ensuring reliable and robust PCB assemblies with vias placed within component pads.

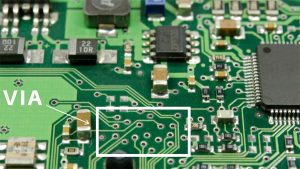

Different Types of Vias

Via in pad is one of the types of vias in a PCB board. You can review the different types of vias we wrote in an article before.

Through-hole via: Through-hole vias, also known as plated-through holes (PTH), are the most basic and widely used type of via. They extend completely through the entire PCB, connecting multiple layers. These vias have conductive barrels that enable electrical signals to pass through all layers, allowing components to be mounted on both sides of the board.

Blind via: Blind vias are drilled from the outer layer of the PCB to one or more inner layers but do not extend through the entire board. These vias provide connections between the outer layers and specific inner layers, allowing for more efficient use of PCB space and reducing signal interference. Blind vias are visible from one side of the board, hence the name “blind.”

PCB Vias - Through Hole Via, Buried Via, Blind Via
PCB Vias - Through Hole Via, Buried Via, Blind Via

Buried via: Buried vias are located entirely within the inner layers of the PCB and do not extend to the outer layers. They are used to establish connections between adjacent inner layers, providing a means for routing signals through the internal structure of the board. Buried vias are not visible from either side of the PCB, hence the term “buried.

Microvia: Microvias are small-diameter vias used in high-density PCB designs. They are typically created using laser drilling or mechanical drilling techniques. Microvias have a much smaller diameter compared to traditional vias, allowing for finer trace routing and increased routing density. They are commonly used in applications such as mobile devices, where space constraints are critical.

Via-in-Pad Filling

Via-in-pad filling, also known as via filling or encapsulated vias, is a process in which the vias are filled with a non-conductive material. The purpose of via-in-pad filling is to address certain challenges associated with standard Via-in-Pad designs, such as soldering, assembly, and electrical performance issues. Here are some key points about via-in-pad filling:

1. Process and Materials
Via-in-pad filling involves depositing a non-conductive material into the vias located within the solder pads of surface mount components. The material used for filling is typically an epoxy-based or resin-based compound. The filling process can be accomplished through various methods, including screen printing, dispensing, or via plugging.

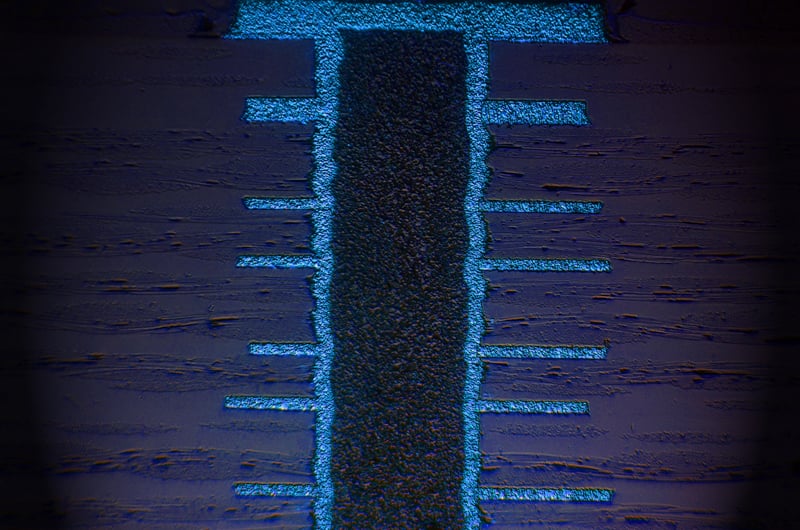

an example of a pcb filled via
An Example of a PCB Filled Via

2. Advantages:
– Improved Soldering: Via-in-pad filling helps overcome soldering challenges associated with standard VIP designs. By filling the vias, it prevents solder paste from flowing into the via holes during assembly, ensuring proper solder paste deposition and reducing the risk of soldering defects.
– Planar Surface: Filling the vias creates a planar surface on the solder pad, allowing for better component placement and alignment during assembly. It helps ensure consistent solder joint formation and reduces the risk of misalignment or tombstoning.
– Enhanced Signal Integrity: Via-in-pad filling can also contribute to improved signal integrity. By eliminating the presence of vias within the solder pads, it reduces the risk of signal degradation, impedance variations, or crosstalk that may occur with standard VIP designs.
– Enhanced Reliability: The use of non-conductive filling materials helps improve the reliability of the PCB assembly. It provides protection against potential issues such as solder joint cracking, thermal stress, or electrical shorts that can occur when vias are exposed within the pads.

3. Considerations:
– Cost and Complexity: Via-in-pad filling adds an additional manufacturing step and material cost to the PCB production process. The equipment and materials required for via filling can increase the complexity and cost of PCB fabrication.
– Design Constraints: Via-in-pad filling may introduce design constraints, particularly regarding the via and pad sizes. Sufficient space must be allocated within the pad area to accommodate the filling material without affecting the component’s solderability or electrical performance.
– Reliability Testing: As via-in-pad filling alters the electrical and thermal characteristics of the PCB, it is important to conduct appropriate reliability testing to ensure the filled vias meet the desired performance and durability requirements.

Fabricated HDI PCB
Fabricated HDI PCB

Via-in-pad filling is often employed in high-density and high-reliability PCB assemblies. It offers a solution to overcome certain challenges associated with standard VIP designs, allowing for improved soldering, assembly, and overall performance of the PCB assembly.

When to Use Vias in Pads?

High-Density Designs: Vias in pads are often employed in high-density PCB designs where space optimization is crucial. By placing vias directly within the component solder pads, designers can achieve a higher component density and reduce the overall PCB footprint.

Signal Integrity Considerations: VIP designs can help improve signal integrity by reducing the inductance and impedance variations introduced by traditional vias located outside the component pads. This is particularly important for high-frequency or high-speed designs where maintaining signal quality is critical.

Thermal Management: Placing vias in pads can enhance thermal management by improving heat dissipation from the component. The vias act as thermal vias, allowing heat to flow more efficiently through the PCB layers, reducing the risk of overheating and improving the reliability of the assembly.

Component Stability: VIP designs can enhance the mechanical stability of components during assembly and operation. By providing additional support and anchoring, vias in pads can prevent component tilt, reduce the risk of tombstoning (one end of the component lifting off the pad), and improve solder joint reliability.

BGA (Ball Grid Array) and QFN (Quad Flat No-Lead) Packages: Vias in pads are commonly used with BGA and QFN packages, which have a large number of IO (input/output) connections located on the underside of the component. Placing vias in the pads allows for better routing of signals between the component and the PCB, improving electrical performance.

BGA - Ball Grid Array Package
BGA - Ball Grid Array Package
QFN (Quad Flat No-Lead) Packages
QFN (Quad Flat No-Lead) Packages

Ultimately, the decision to use vias in pads should be based on the specific requirements of the design, considering factors such as space constraints, signal integrity, thermal management, component stability, and the overall trade-off between benefits and potential challenges posed by VIP designs.

PCB Manufacturing Service in ELEPCB

ELEPCB, as an innovative multilayer PCB manufacturer and rigid-flex PCB manufacturer, we are pleased to provide reliable PCB manufacturing, PCB assembly services. Welcome to quote to us if you have any needs for PCB Boards. We are in the 24/7 mode. Feel free to contact us.

Conclusion

PCB Via in Pad (VIP) has emerged as a valuable technique in modern PCB design. As electronic devices continue to demand higher densities and improved performance, understanding and leveraging the benefits of PCB Via in Pad will be instrumental in achieving efficient and reliable PCB designs. With VIP, engineers can push the boundaries of PCB technology, unlocking new possibilities for advanced electronic systems.
