Pacchetti BGA are widely used in modern electronic devices as they offer high-density interfacing plus better electrical performance. However, BGA components’ hidden solder joints also make them more difficult to inspect and repair when assembly defects or long-term reliability issues arise.
BGA reballing is used to fix a broken BGA chip rather than replacing it. It’s widely used not only in laptops and gaming consoles but also in various industrial equipment, allowing the restoration of solder connections and extension of the service life of valuable electronics.
This guide will explain what BGA reballing is, how the process works, when it is necessary, and how manufacturers can reduce BGA-related failures through proper PCB design, Assemblaggio SMT control, and inspection methods.
What is BGA Reballing?
BGA reballing is the process of removing the faulty, damaged solder connections from a BGA chip, followed by the replacement of solder balls with new ones. The BGA chip is first cleaned, followed by the fixing of new solder balls using a stencil, after which the reflowing of the solder process is performed to connect it with the PCB again.
Advantages and Limitations of BGA Reballing
BGA reballing, if carried out in a proper way, can be an effective method of riparazione components and can outperform the disadvantages of this technology.
Vantaggi
-
Returns default chip dissimilarities.
-
Makes repair cheaper.
-
Able to prolong the functional period of devices.
-
Minimises tech waste.
-
Compatible with original hardware.
Limitazioni
-
It is unable to fix broken silicon.
-
Needs costly rework machinery.
-
Has to involve experienced specialists only.
-
Misalignment could cause failure.
-
Involves a procedure that takes plenty of time and is complicated technically.

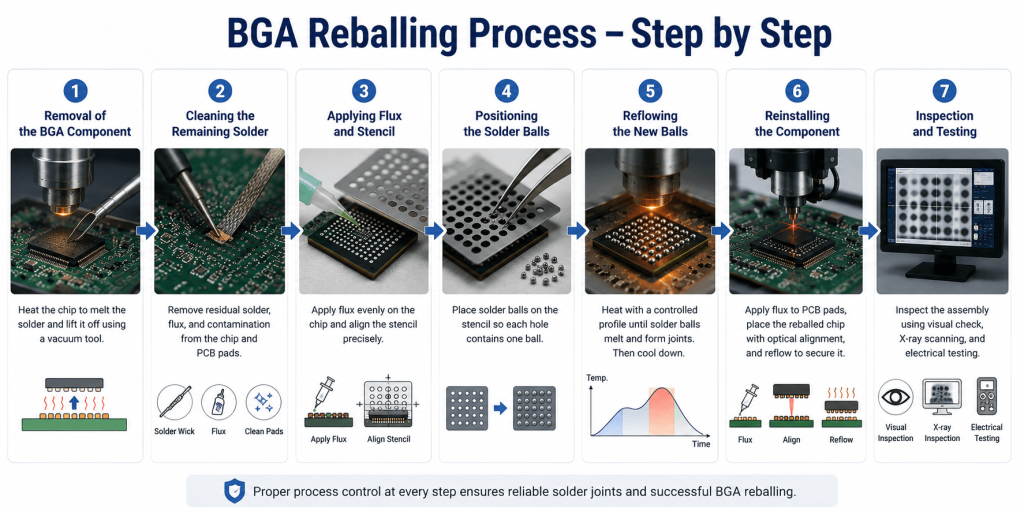

Step-by-Step BGA Reballing Process
Before starting the BGA reballing process, the chip and PCB need to be handled with care using special machines to avoid overheating, stress meccanico, and contamination of the sample.
Removal of the BGA Componente
The process of heating BGA chips is done using hot-air or infrared rework stations that melt the solder. Once the soldering temperature has been reached, the chip will be picked up by a vacuum tool. Controlling temperatures during this stage helps avoid warping of the PCB, lifting of pads, and breaking of surrounding components.
Cleaning the Remaining Solder Balls
After the component has been removed, the solder remaining on the chip and PCB pads is removed using a soldering iron, solder wick, and flux. Any residue, oxidation, or excess solder is also removed to make sure the surface is clean and smooth. Cleaning of the surfaces helps ensure that strong adhesion and electrical connections are attained during the reballing process.
Applying Flux and Stencil
A thin layer of high-quality flusso is applied onto the surface of the chip evenly, so as to ensure effective wetting of the solder. A stencil that is designed for the BGA package is aligned precisely with the chip. Proper alignment of the stencil eliminates the possibility of any damaged pads or wrong connections.
Positioning the Saldatura Balls
After the solder balls have been prepared and cleaned, they are placed over the stencil in such a way that each hole gets one ball in it. This step requires care since any of the solder balls can get loose in the process. It is crucial to ensure that all solder balls are in place, since having just one misplaced ball can cause a fatal error in the functioning of the device.
Reflowing the New Balls
The chip is heated following a controlled temperature profile until the BPA solder balls melt and adhere to the chip pads. During reflowing, surface tension forms equally shaped spherical solder balls. After cooling, the newly attached solder balls are strong enough to be used in the next step of assemblea.
Reinstalling the Component
New flux is applied to the PCB pads, and the reballed BGA chip is carefully placed in its position using optical aligning equipment. The assembly is again heated so that solder balls can be melted and fixed permanently on the PCB. Hence, positioning is very critical because a slight misunderstanding can lead to the formation of circuit tracks.
Ispezione e test
After installation has been completed, the newly made assembly undergoes visual assessment, X-ray scanning, and electrical tests. X-rays show hidden solder joints formed on the PCB in the process of assembly.
BGA Reballing vs Chip Replacement
BGA reballing is suitable when the chip is functioning normally, but the solder joints are defective. Whether to replace the chip depends on its actual maintenance needs.
Aspetto | BGA Reballing | Chip Replacement |
Utilizzo | This technique is applied when the chip is working properly and has some problems with the soldering points, which are damaged because of cracks or wear and tear. | Used when the chip itself is electrically or physically damaged and cannot be repaired. |
Costo | Lower expenses for repairing because it is possible to use the old chip again. | Higher expenses because a new chip must be installed. |
Risk | Moderate danger since the success depends on the correct placement of solder balls. | Higher danger level because of possible compatibility issues, sourcing the original chip, and complexity of installation. |
Repair Time | Faster than usual ways of repairing because the soldering points are fixed only. | Usually takes longer due to chip procurement, replacement, and testing. |
Affidabilità | It works well when the old chip is working fine and the reballing is done properly. | A longer process due to obtaining and installation. |
Best Choice | The most suitable way of repairing is in case the soldering problems appear because of thermal cycling or mechanical stress. | Very reliable method of repairing if the part used for chip replacement is genuine. |
When Should You Choose BGA Reballing?
BGA reballing is used as a solution when the chips are still operational, but the solder joints have suffered damage. This allows for the connection to be reestablished at a lower price than replacing the entire chip. Here are a few scenarios given to understand the use of BGA reballing.
Intermittent Device Failure
A cracked BGA solder joint causes a laptop, industrial controller, or video card to shut down or restart randomly. However, as long as the chip is functioning, reballing helps cure the problem by restoring the solder joints without replacing the entire IC.
Thermal Cycling Has Damaged the Solder Joints
The cracks formed by thermal cycling frequently affect the solder balls of the devices. In that case, the use of reballing allows the solder joints to be substituted with new solder balls, maintaining the device.
High-Value and Difficult-to-Source Components
Certain processors, GPUs, and ICs used in various industrial applications are either overpriced, obsolete, or hard to find. However, the BGA reballing provides a cost-efficient solution in cases where diagnostic tests have indicated that the only failure relates to the solder joints.
Raggi X Inspection Confirms Solder Joint Failure
The use of X-ray inspection in solder joint failure is evidenced by the appearance of voids, cracked solder balls, or defective solder joints, while the chip itself is free of any defect.
Common Causes of BGA Failure
Mechanical stress, differences in temperature, flaws in manufacturing, or inadequate handling lead to the majority of BGA failures.
Thermal Cycling
During normal operation of the device, solder joints go through multiple heating and cooling cycles, which cause them to expand and contract all the time. This leads to the formation of small cracks after some time, which disrupt electrical connections and can result in failure or malfunction of the device.
Sollecitazioni meccaniche
Mechanical stress imposed on solder joints due to bending boards, drops, vibrations, and manual actions leads solder balls to weaken and crack at some point, causing poor electrical operation.
Poor Manufacturing Quality
Incorrect solder quantity, wrong heating processes, poor stencil alignment, or other contaminants can lead to weak solder joints between the chip and the PCB. While it might not seem like a big issue early on, weak solder joints can later cause failures during operation.
Surriscaldamento
Insufficient cooling system, blocking of aeration and the heat always being above a constant temperature lead to fatigue of solder joints and oxidation of solder material. Prolonged overheating weakens solder, making it last not too long and increasing the odds of errors occurring with BGA soldering.
Pollution and Oxidation
Humidity, dirt, flux residues and oxidation affect the quality of solder, decreasing bonding strength between the chip and PCB. Polluted solder joints are of low reliability and susceptible to damage during prolonged operation and temperature variations.
How to Prevent BGA Failures During PCB Assembly
BGA reballing only fixes certain difetti del giunto di saldatura, but typically this method is a reactive one after defects have happened. It’s a better solution for manufacturers to prevent BGA failures at the PCB assembly stage because it saves money and improves product reliability.
Optimize PCB Design Before Assembly
In fact, it is possible to prevent many problems from the design stages. If the PCB layout is properly done, it will result in reliable solder connections and will also be a source of minimum stress on BGA components.
Key design considerations include:
-
Correct BGA footprint design: The PCB pad size, pitch, and solder mask opening should fit perfectly with the BGA’s dimensions for a good solder joint.
-
Adequate PCB layer stack-up: Adatto PCB layer stacking is achieved through the right layer arrangement so that signal integrity is maintained, which also prevents excessive bending in the board during assembly.
-
Copper balance: Uneven copper distribution can distort the board during reflow soldering; BGA alignment and solder joint reliability would suffer as a result.
-
Thermal management design: Rame areas and thermal vias can be used to effectively carry away heat and limit thermal stress on solder joints.
Control Solder Paste Printing Quality
The reliability of BGA solder joints is directly affected by the solder paste printing process. Incorrect solder volume or uneven paste deposition can result in open connections, insufficient solder joints, or solder bridging.
To reduce these risks, manufacturers should control:
- Stencil design and thickness to achieve consistent solder paste volume.
- Solder paste storage and handling to maintain proper material performance.
- Printing parameters, including pressure, speed, and alignment accuracy.
- Pasta saldante inspection (SPI) to detect printing defects before component placement.
Maintain Accurate Component Placement and Reflow Profiles
Precise placement and controlled saldatura a riflusso are essential for BGA reliability.
During component placement:
- High-precision placement equipment ensures accurate alignment between BGA solder balls and PCB pads.
- Proper component positioning prevents solder joint defects caused by misalignment.
During reflow soldering:
- The temperature profile of the reflow oven will need to be appropriately determined based on the composition of the solder paste and the size of the BGA package.
- Solders or other parts might be melted or damaged by a very high temperature, and solder joints can become fatigued.
- However, soldering at too low a temperature might lead to underheated melts that result in weak or failed joints.

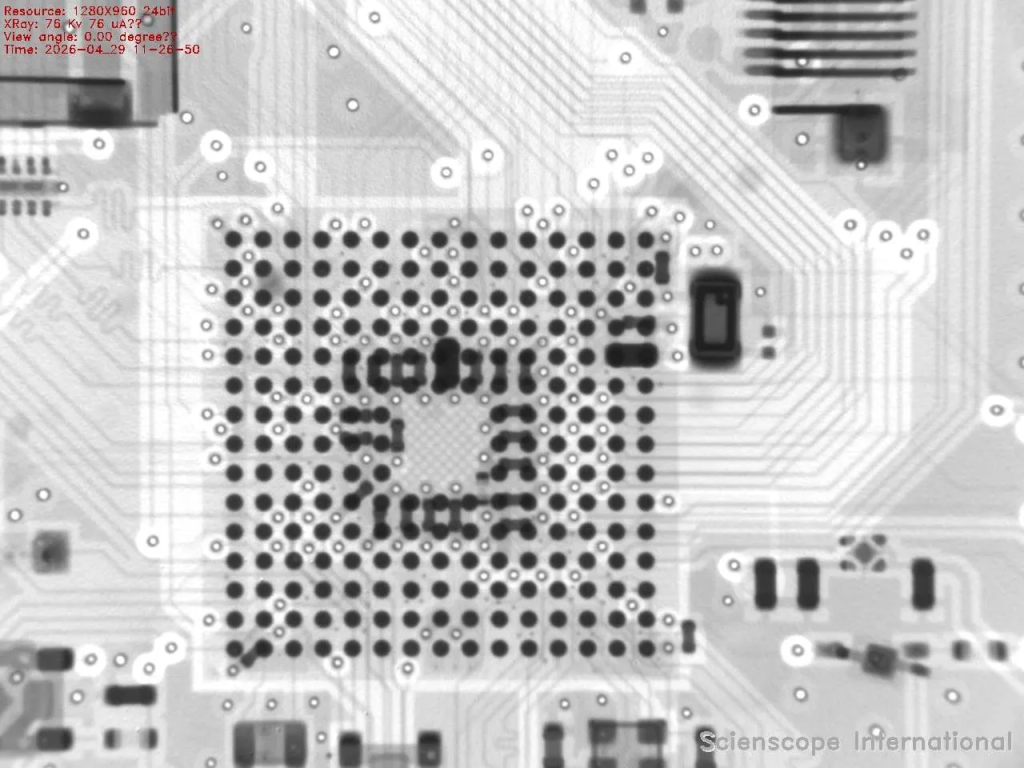

Use X-Ray Inspection for Hidden BGA Defects
Ispezione a raggi X is essential for identifying hidden defects, including:
- Solder voids
- Insufficient solder joints
- Solder bridging
- Misalignment between BGA balls and PCB pads
- Cracked or irregular solder connections
Perform Functional Testing and Reliability Validation
Even when solder joints appear acceptable, there may still be electrical or mechanical issues that affect long-term reliability. Comprehensive testing helps ensure that assembled printed circuit boards (PCBs) meet performance requirements.
Common validation methods include:
- Ispezione ottica automatizzata (AOI) for visible soldering and placement defects.
- Test in-circuit (ICT) to verify electrical connections.
- Test funzionali (FCT) to evaluate actual product performance.
- Test di ciclismo termico for applications exposed to temperature changes.
Reduce BGA Rework with Professional PCB Assembly Services
The BGA reballing repair method enables restoration of deteriorated soldering connections while maintaining the original IC component. If it is performed following the right procedure, with the right components and appropriate checking, it can provide dependable electrical performance and prolong the operation of electronic devices.
Although BGA reballing is an effective solution for repairing certain solder joint failures, the best strategy for improving reliability and reducing production costs is to prevent defects during PCB assembly.
ELEPCB provides turnkey PCB assembly services with advanced SMT manufacturing capabilities, professional inspection processes, and engineering support. From prototype to mass production, we’re here to help customers achieve reliable BGA assembly.
Contattateci oggi stesso to discuss your detailed requirements!
Domande frequenti
A1: BGA reballing is the process of removing previously used solder balls from a BGA component and installing new ones before the component is put back into place again. However, BGA rework is a wider process that includes removal, repair, replacement, or installation of a BGA part, and reballing is only one of the methods used during this process.
A2: If the reason for the display problem in the laptop lies in cracked BGA solder joints and the chip is indeed working, then such problems may be resolved permanently. If the graphics processor or chipset has sustained some damage inside, the problems will not be settled by reballing only, as swapping the chip becomes inevitable.
A3: Yes. However, BGA reballing will only allow correcting the situation if the failure came from damaged solder joints under the GPU or memory chips. In the case of the solder balls being cracked due to heat cycling, mechanical shocks, or high temperatures, BGA reballing is sufficient, but it is not able to fix the problem.
A4: Chip replacement is a better alternative when it is established that the chip has undergone damage due to overheating, electrical malfunction, or physical defects. In this case, it is worth mentioning that reballing only restores the soldering connections. Therefore, chip replacement should be implemented in instances when the internal circuitry is damaged.
